Frameless fabric light box Home > Fabric light box > Frameless fabric light box

wall mounted flexible fabric face illuminated advertising printing light box display led sign board

Name: wall mounted flexible fabric face illuminated advertising printing light box display led sign board
Brand: Guangzhou Huibaimei Information Technology Co.,Ltd.
SKU: HBMC-120 lightbox
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HBMC-120 lightbox

120mm frameless fabric light box with edge-lit led3535 or back-lit led 3030 are all suitable for this type fabric light box. it is use to decaration,shopping mall,metro and so on

HBMC-120 light boxDownload

INQUIRY

PDF Format

Description

LED Light Source

Installation Method

Case

Name:wall mounted flexible fabric face illuminated advertising printing light box display led sign board
120mm frameless fabric light box with edge-lit led3535 or back-lit led 3030 are all suitable for this type fabric light box. it is use to decaration,shopping mall,metro and so on

name	backlit light box
Light source	Backlit led3030 and led2835,sidelit 3535
Function	For advertising and display
Material	6063 aluminum alloy and fabric textile poster
Type	single side
Hang type	wall mounted,ceiling or free standing
Poster print	UV,3P fabric,textile,french fabric,dye sublication
Certification	CE UL RoHS SGS
power supply	12v/24v 100-600w

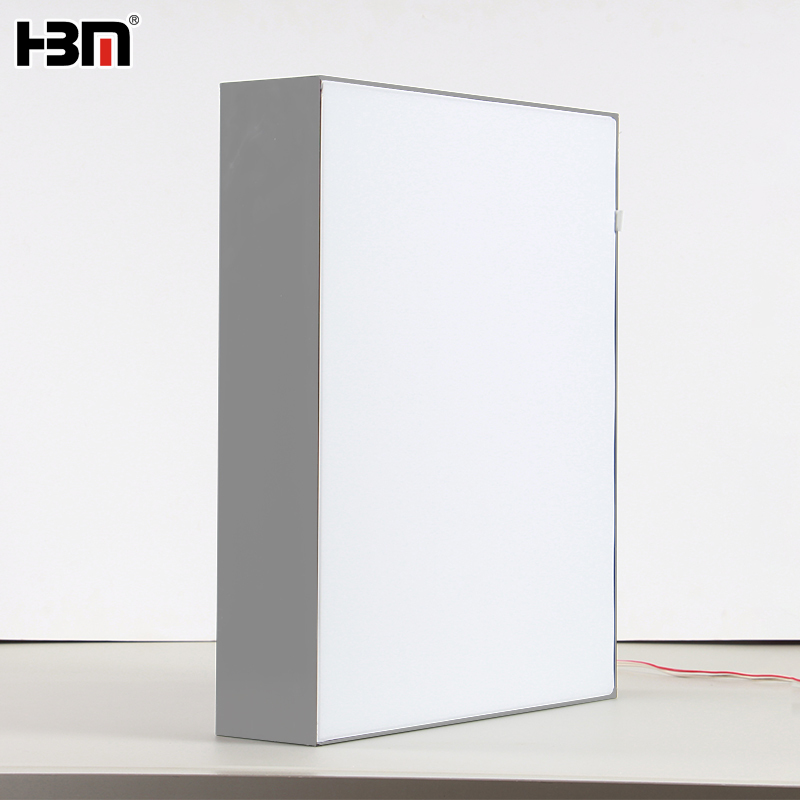

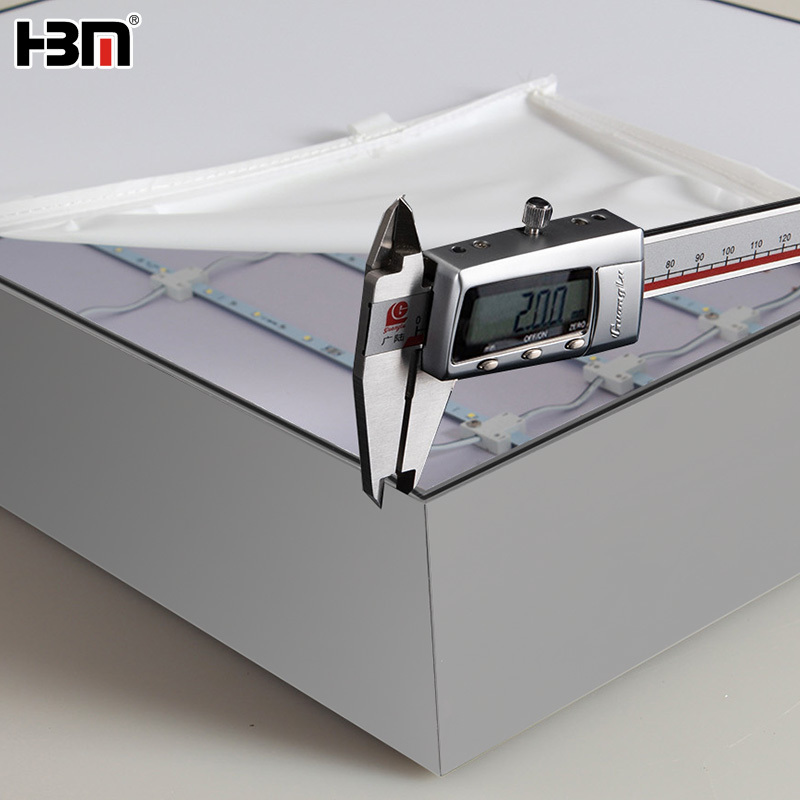

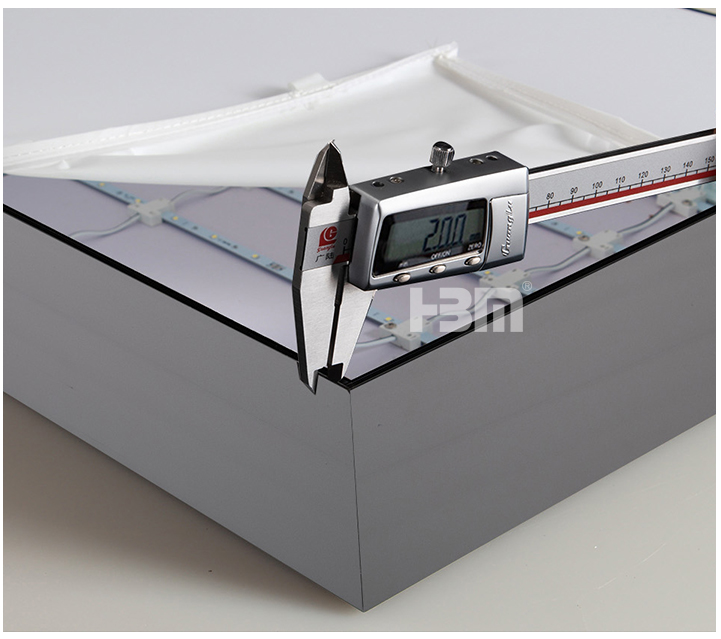

120mm fabric light box:

Light box light source matching scheme：

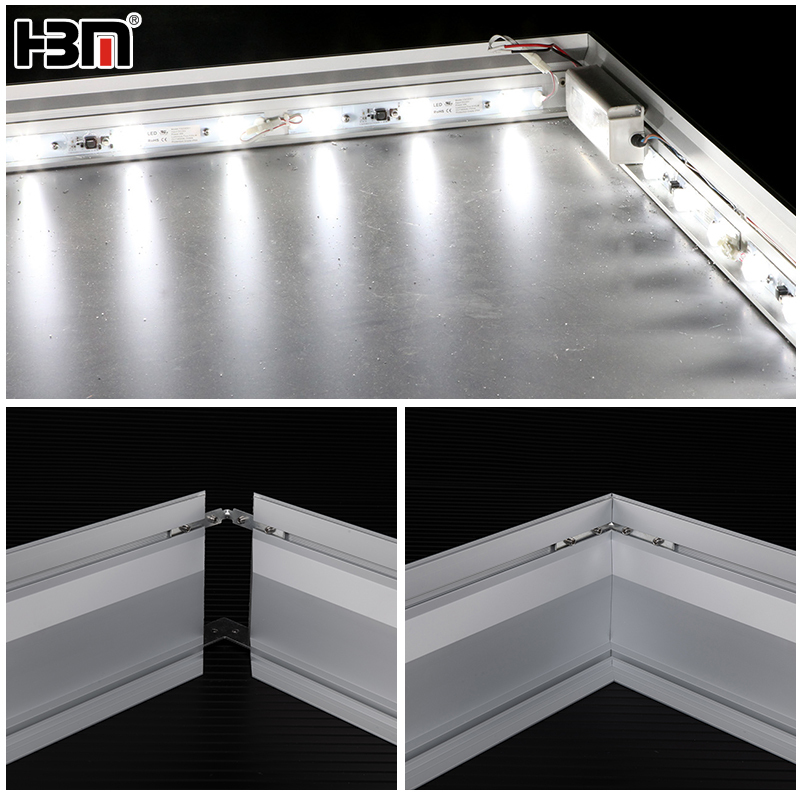

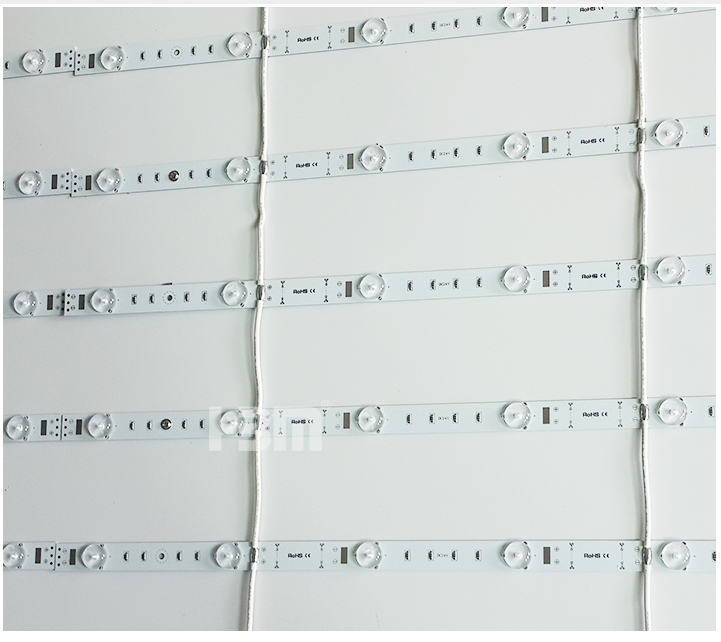

There are two choices of led lighting source for new fabric light box (thicken type): side-lit led (smd3535 high power led) or back-lit led (smd2835/smd5050 and smd3030)

Single Side Frameless Fabric Light Box Installation Instructions：

Installation Steps：
1.Confirm the location and mark on the wall
2.Drill hole and insert expansion screws
3.Put the connectors on the frame
4.Splice 4 corners and fix by screws
5.Put the back panel on the frame then fix
6.Put the frame on the wall
7.Fix the LED light on the back panel
8.Connect power supply with corresponding positive and negative wire

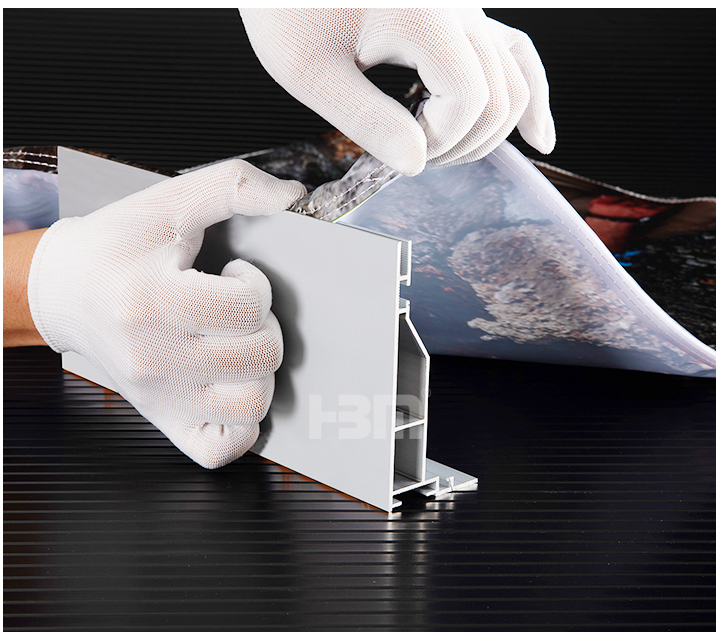

9.Insert the 4 corners of the poster into frame
10.Insert the rest parts of the poster into the frame
11.Finished products
Installation Steps

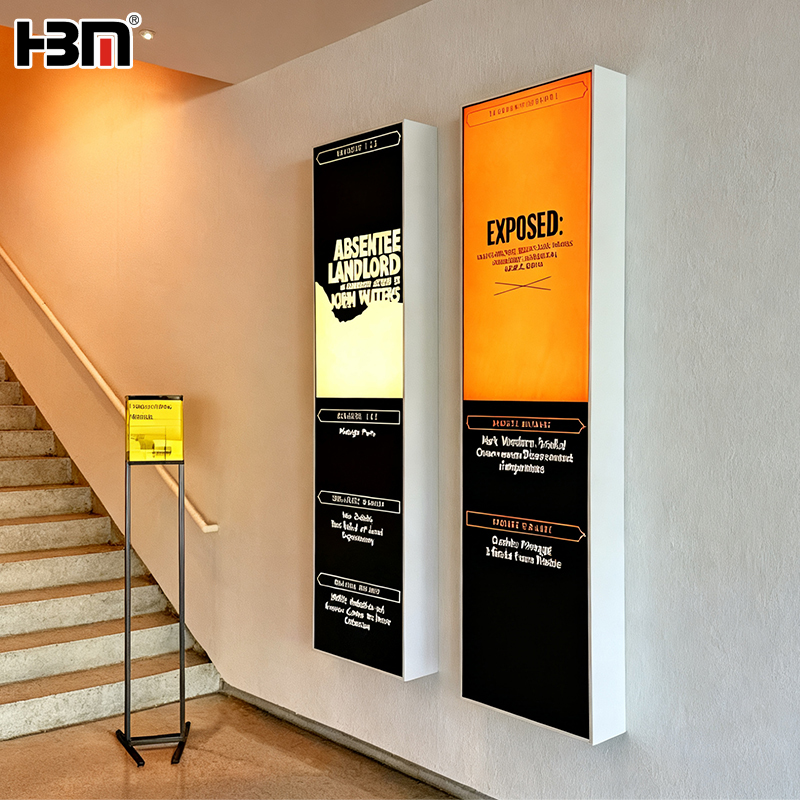

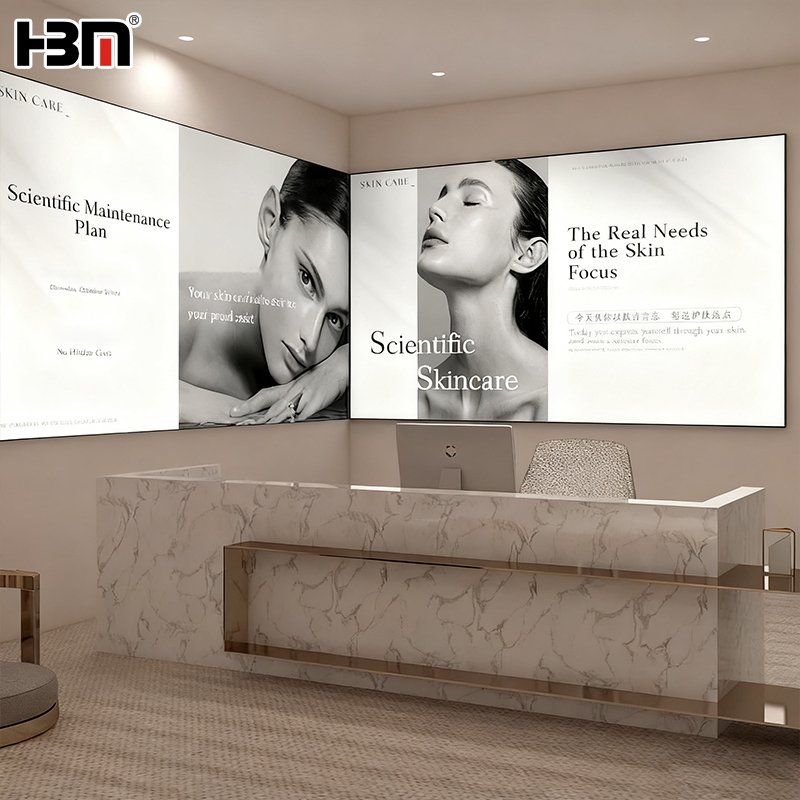

APPLICATION CASE OF ULTRA THIN FABRIC LIGHT BOX：
120mm frameless fabric light box with edge-lit led3535 or back-lit led 3030 are all suitable for this type fabric light box. it is use to decaration,shopping mall,metro and so on
