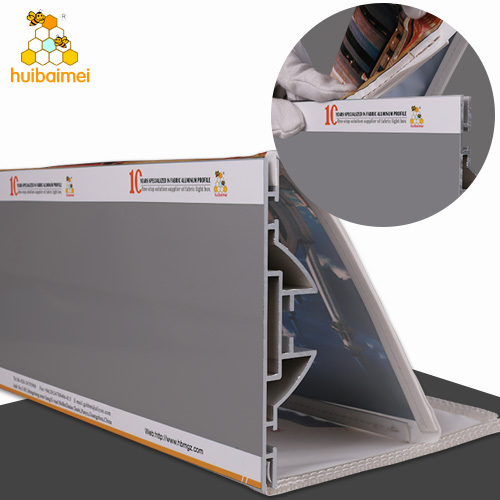

Thicken double sided 150mm frameless aluminum frame for expo fabric light box

Name: Thicken double sided 150mm frameless aluminum frame for expo fabric light box
Brand: Guangzhou Huibaimei Information Technology Co.,Ltd.
SKU: HBMCD-150 Aluminum
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HBMCD-150 Aluminum

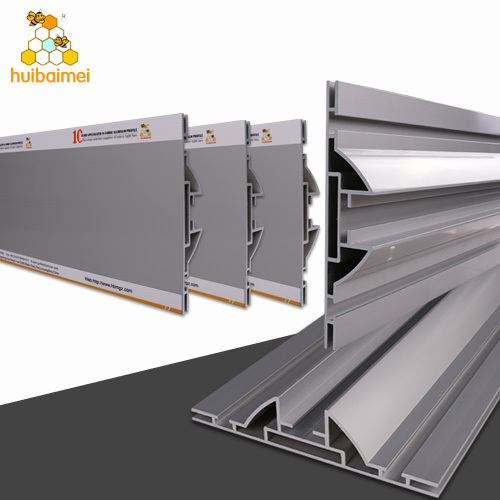

150mm double side aluminum profile is mainly used for trade show / exhibition advertising display, thicken wall thickness can be produced for large format fabric lightbox. Free standing type with aluminum base.

INQUIRY

PDF Format

Description

Installation Steps

case

OTHER ALUMINUM

Product description：
150mm double sided aluminum profile is mainly used for trade show / exhibition advertising display, 2mm wall thickness can be make large format fabric light box. Can be with backlit and edgelit light for the LED source. In additional, it is also designed with LED grooves for you to assemble simply and conveniently. Two side advertisement dispaly to attract customer eyes and which is the strongest show of products.

Product specification：

Model	HBMCD--150

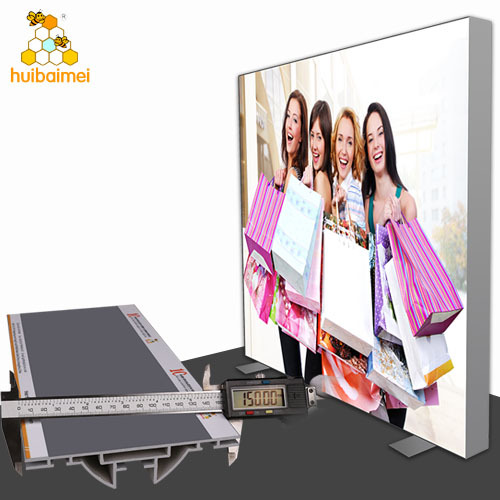

Thickness	150mm
Length	6meters (conventional)
Material	6063 aluminum alloy
Function	For fabric advertising light box
Color	Silver,customized colors available
Shape	Strip
Type	Double sided
Surface Treatment	Anodized(conventional), other crafts available.
OEM & ODM	Both
Certification	SGS
Packing	Bulk package, special packing foam to protect the frames.
Free Sample	Less than 10cm sample for free is available,but you will be responsible for the shipping charge.

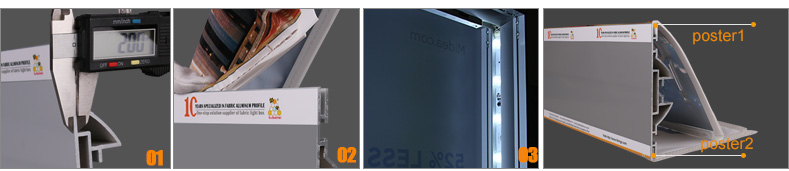

Product details:
01.Unique design solid up to 2.0 mm wall thickness
02.Embedded Poster Simply, just insert the silicon into the U slot
03.150mm double side aluminum profile use the high power edge-lit led .Ex: insert the led strip to the aluminum profile middle slot.
04.Two sided can be with poster
Double sided 150mm frameless fabric frame for expo light box

Double sided 150mm frameless fabric frame for expo light box

Product accessories:
01.UV printing fabric poster sewed with silicon rubber strips
02.4 Big corner connector E and 8 Small corner connector A
03.150mm aluminum profile with connectors
04.90°seamless splicing
Double sided 150mm frameless fabric frame for expo light box

Installation Steps:
1.Prepare 4 aluminum profiles and the following accessories
2.As picture 2,splice the first and second 90° angle, forming U-type
3.Splice the fourth side of the frame
4.150mm double side aluminum frame finished
5.Install LED and power supply inside of the frame
6.Set outlet wire from the frame side
7.Install aluminum base (flat and triangle type for selection)
8.Finish poster installation
(note:when install the poster, please insert the 4 corners of the poster to the recessed groove in the form of diagonal,then insert the four sides.)
Double sided 150mm frameless fabric frame for expo light box

Double side aluminum profile application case：

150mm double side aluminum profile is widely used for advertisement light box( mainly for trade show /expo display),also for shopping mall window decorate display.
120mm double side aluminum profile

Other models for your reference:
HBM developed more than hundreds of models aluminum profile for fabric light box, varous frame thickness, styles and function for you to choose according to installation place and requirement , 2 ways display: single side and double sided.
